Concealed Cisterns

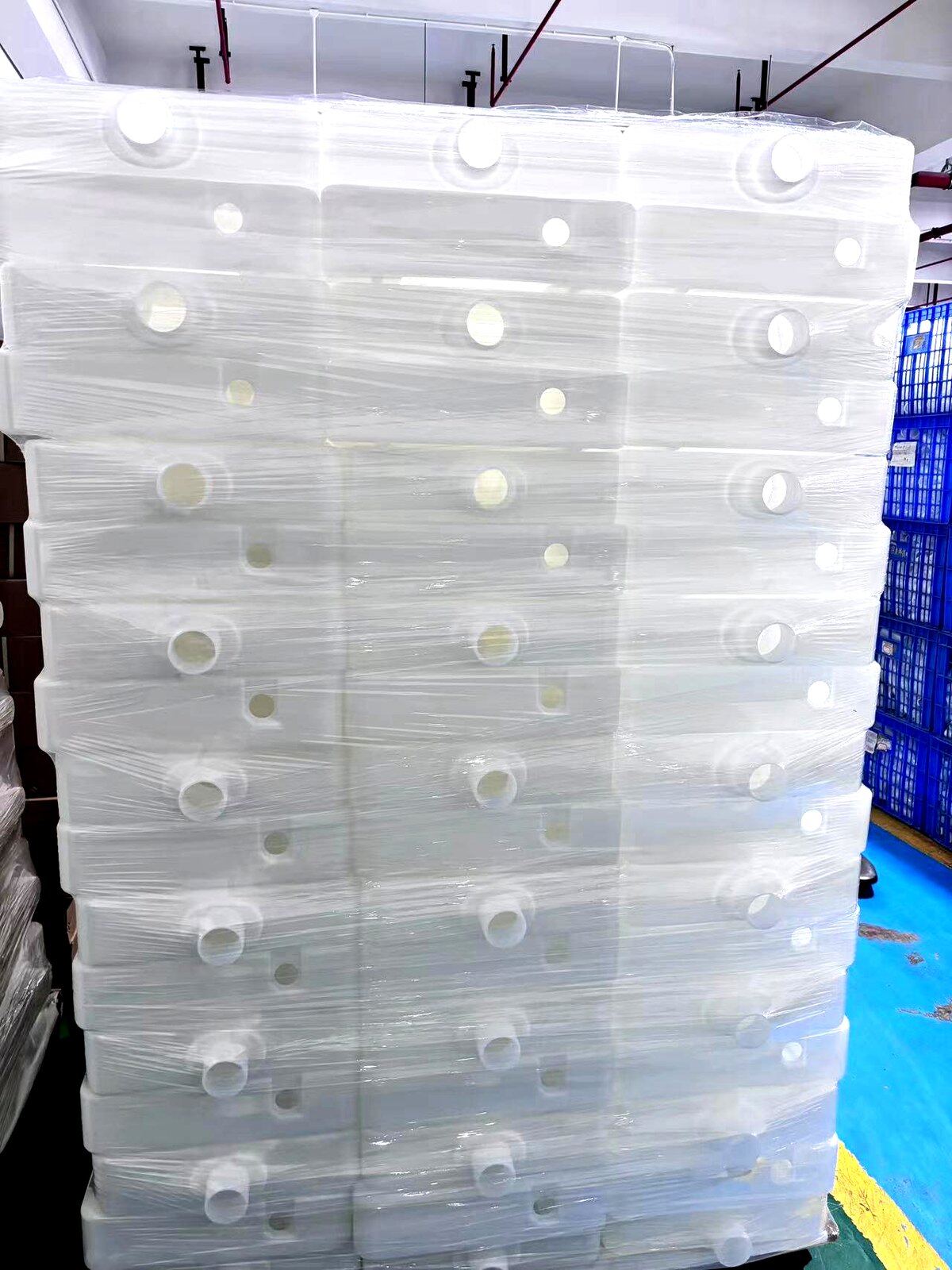

Thirty-three models across four groups: pneumatic, mechanical, the D series for floor-mounted pans, and support frames. One-piece blow moulded HDPE tanks rated for a 50-year service life, EPS insulated, dual flush 3/8 L, flow rate 2.2–2.4 L/s, noise below 55 dB. Functional parts rated to 200,000 flushes. Frames adjust 0–200 mm in height and carry a 400 kg load.
Filter by installation constraint
Actuation position (front press / top press) and inlet position (side / top) are selected at order time, not fixed per model. Tell us your wall condition and we will confirm what is available for the model you choose.
Showing all 33 models
Notes
- -G18, G18-1, G19, G20, G28: cistern thickness selectable at order time.
- -G21: supplied with white or grey EPS foam.
- -G100: low-height model for installations under 1 m, available in front-press and top-press versions.
- -D100: flush volume 4/8 L. All other D series models: 3/8 L.
Pneumatic (6)
| Model | Image | Pan compatibility | Dimensions (W x D x H) | |
|---|---|---|---|---|

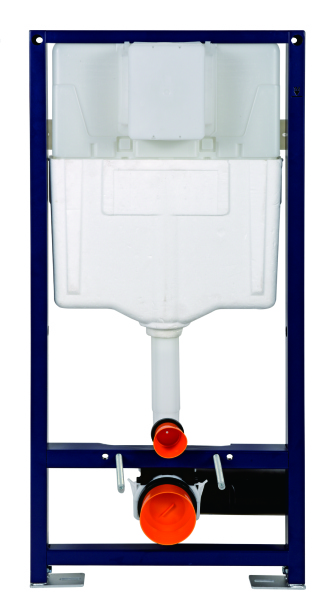

| G13 |  | Wall-hung + seat-type | 500 x 130 x 1130 mm | Brand this product |
| G15 |  | Seat-type only | 500 x 130 x 1130 mm | Brand this product |

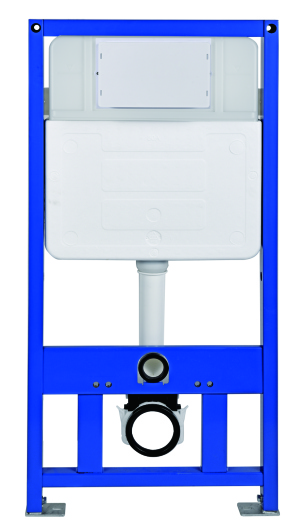

| G18 |  | Seat-type only | 500 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |

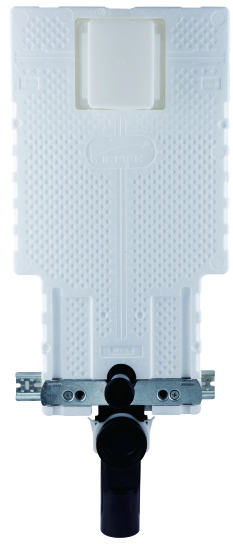

| G21 |  | Wall-hung + seat-type | 470 x 116 x 1110 mm (depth 116/126 selectable) | Brand this product |

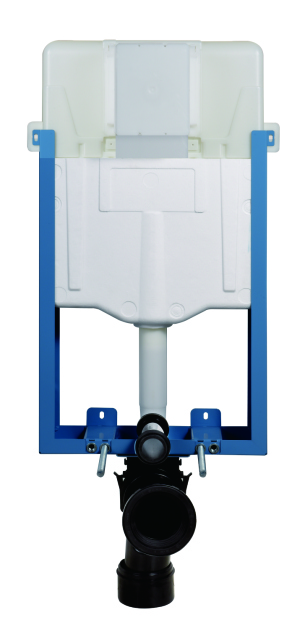

| G22 |  | Wall-hung + seat-type | 490 x 120 x 990 mm | Brand this product |
| G28 |  | Seat-type only | 525 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |
Mechanical (14)
| Model | Image | Pan compatibility | Dimensions (W x D x H) | |
|---|---|---|---|---|
| G12 |  | Wall-hung + seat-type | 370 x 120 x 1040 mm | Brand this product |
| G18 |  | Seat-type only | 500 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |
| G18-1 |  | Seat-type only | 500 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |
| G19 |  | Seat-type only | 500 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |
| G20 |  | Seat-type only | 525 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |
| G28 |  | Wall-hung + seat-type | 525 x 80 x 1112 mm (depth 80/100 selectable) | Brand this product |
| G38 |  | Seat-type only | 500 x 120 x 820 mm | Brand this product |
| G48 |  | Seat-type only | 500 x 120 x 1112 mm | Brand this product |
| G58 |  | Seat-type only | 495 x — x 718 mm (depth on request) | Brand this product |
| G68 |  | Seat-type only | 475 x — x 820 mm (depth on request) | Brand this product |
| G98 |  | Wall-hung + seat-type | 500 x 120 x 1050 mm | Brand this product |
| G100 |  | Wall-hung + seat-type | 425 x 150 x 820 mm | Brand this product |
| G23 |  | Seat-type only | 495 x — x 718 mm (depth on request) | Brand this product |
| G02 |  | Wall-hung + seat-type | 490 x 120 x 990 mm | Brand this product |
D Series (8)
| Model | Image | Pan compatibility | Dimensions (W x D x H) | |
|---|---|---|---|---|
| D80 |  | Floor-mounted | 495 x 80 x 1110 mm | Brand this product |

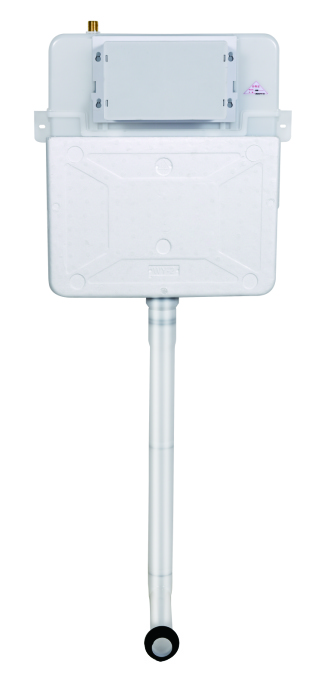

| DZS80 |  | Floor-mounted | 495 x 80 x 1110 mm | Brand this product |

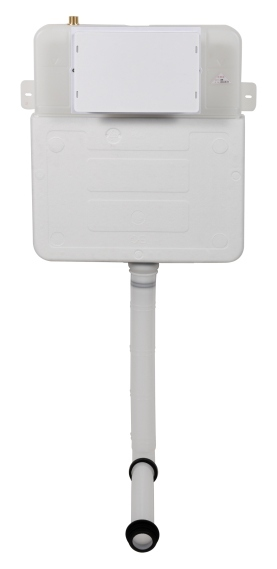

| D100 |  | Floor-mounted | 495 x 100 x 1110 mm | Brand this product |

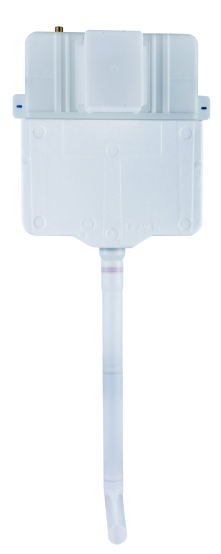

| D102 |  | Floor-mounted | 495 x 80 x 1110 mm | Brand this product |

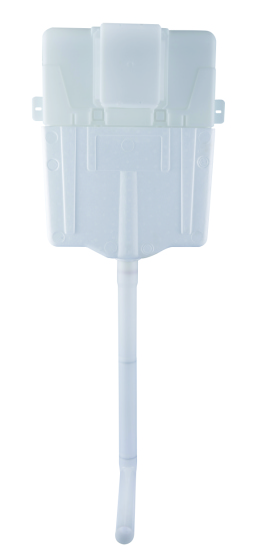

| D103 |  | Floor-mounted | 495 x 80 x 1110 mm | Brand this product |

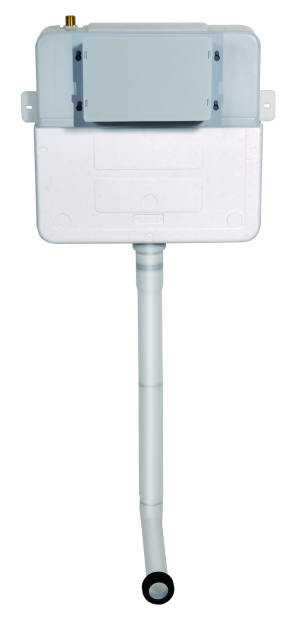

| D120 |  | Floor-mounted | 495 x 120 x 1010 mm | Brand this product |

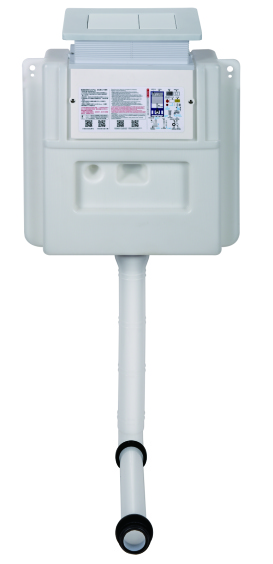

| D150 |  | Floor-mounted | 425 x 150 x 860 mm | Brand this product |

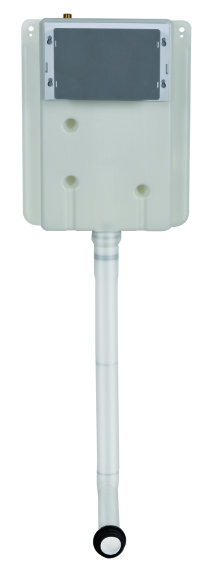

| D370 |  | Floor-mounted | 370 x 120 x 1110 mm | Brand this product |
Support Frames (5)
| Model | Image | Pan compatibility | Dimensions (W x D x H) | |
|---|---|---|---|---|
| G03 | — | Wall-hung | 500 x 1112 mm (depth on request) | Brand this product |
| G04 |  | Not applicable (frame only) | — | Brand this product |
| G05 |  | Not applicable (frame only) | — | Brand this product |
| G06 |  | Not applicable (frame only) | — | Brand this product |
| G78 | — | Wall-hung | 445 x 340 mm (depth on request) | Brand this product |
